USB 3.1 Quad-Layer 90 Degree Bent-Pin Connector – C071070

Name: USB 3.1 Quad-Layer 90 Degree Connector - C071070 | GSCONN
Brand: GSCONN

USB 3.110GbpsBoard-Mount

Tags:

#90 Degree #Bent-Pin #Quad-Layer #USB 3.1 #USB Connector

Engineered for high-reliability USB interconnect, this 3.1 Standard connector features quad-layer high-density construction with right-angle cable exit for horizontal board...

Request a Quote →

3.1 Standard interface10Gbps SuperSpeed+ rate

Quad-layer PCB designQuad-stack high-density design

90° exit anglePerpendicular PCB exit

USB 3.1 Gen 2 certifiedCompact board footprint

Technical Specifications

USB Version	USB 3.1
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Quad-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	U2 contacts: Phosphor Bronze, half gold-tin plated; U3 contacts: Brass, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	10Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.1 Standard connector supporting standard 3.1 data protocols
Quad-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Bent-Pin contact geometry optimized for specific mating and retention requirements
Compatible with standard USB cable assemblies for plug-and-play deployment
Suitable for IoT gateway and edge-computing data acquisition

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

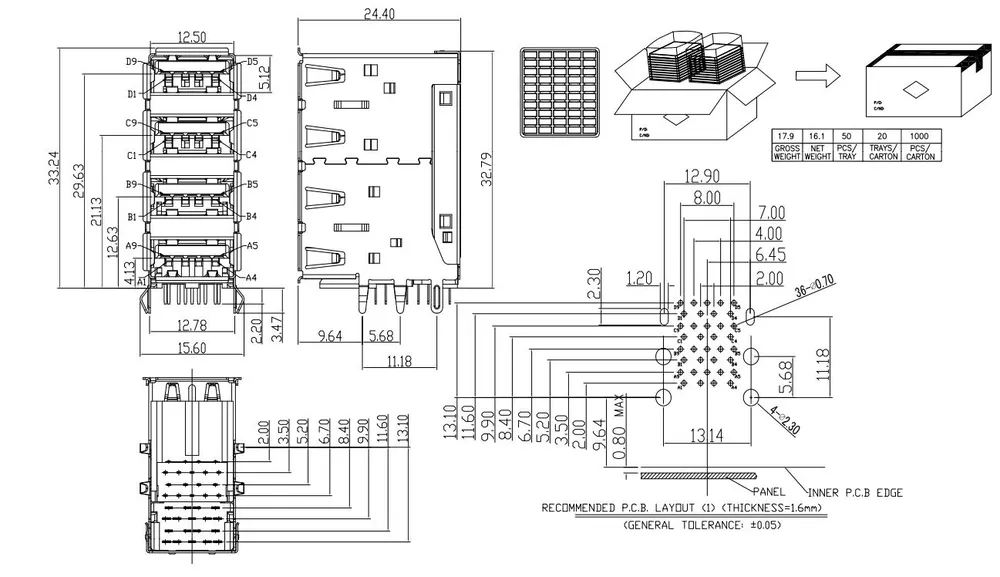

Product Drawing

Engineered for high-reliability USB interconnect, this 3.1 Standard connector features quad-layer high-density construction with right-angle cable exit for horizontal board integration. The standard contact configuration supports full USB 3.1 signaling requirements for data and power delivery. PA66 + glass-fiber reinforced housing provides mechanical strength and heat resistance for long-term reliability. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
