USB 3.1 Single-Layer 180 Degree Straight-Pin Connector – C071326

Name: USB 3.1 Single-Layer 180 Degree Connector - C071326 | GSCONN
Brand: GSCONN

USB 3.110GbpsBoard-Mount

Tags:

#180 Degree #Single-Layer #Straight-Pin #USB 3.1 #USB Connector

Optimized for compact PCB footprint designs, this 3.1 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board placement. The...

Request a Quote →

3.1 Standard interface10Gbps SuperSpeed+ rate

Single-layer PCB designSingle-row contact array

180° exit angleIn-line PCB exit

USB 3.1 Gen 2 certifiedStandardized 0.1" pin pitch

Technical Specifications

USB Version	USB 3.1
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	180 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	U2 contacts: Phosphor Bronze, half gold-tin plated; U3 contacts: Brass, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	10Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.1 Standard connector supporting standard 3.1 data protocols
Single-layer PCB design with 180° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Straight-Pin contact geometry optimized for specific mating and retention requirements
Compatible with high-volume SMT pick-and-place assembly equipment
Compatible with educational electronics, prototyping, and STEM platforms

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

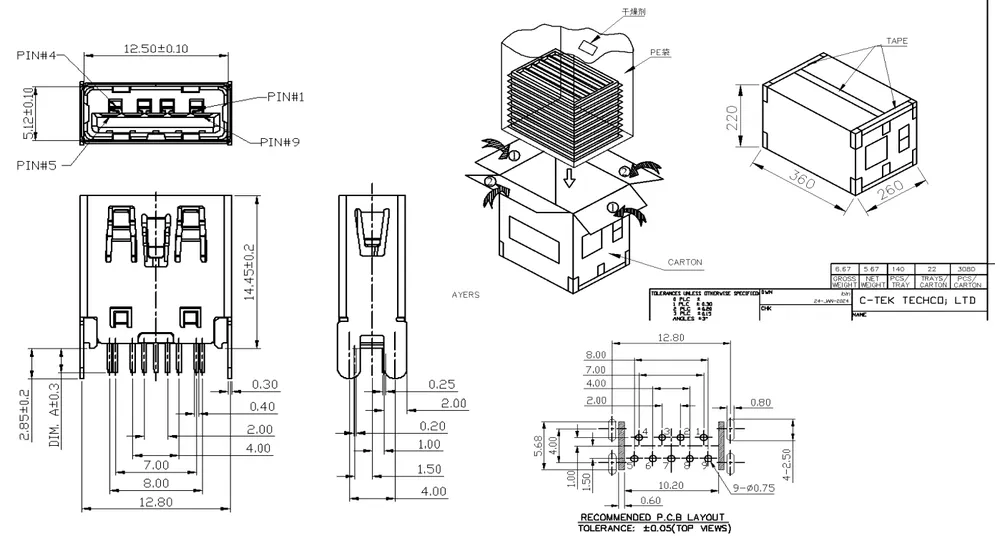

Product Drawing

Optimized for compact PCB footprint designs, this 3.1 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board placement. The standard contact configuration supports full USB 3.1 signaling requirements for data and power delivery. Operating temperature range supports -40°C to +85°C industrial deployment across harsh environments. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
