USB 3.1 Single-Layer + HDMI 2.1 Combo Connector – L000703

Name: USB 3.1 Single-Layer 90 Degree Connector - L000703 | GSCONN
Brand: GSCONN

USB 3.110GbpsBoard-Mount

Tags:

#Combo #HDMI #Single-Layer #USB 3.1 #USB Connector

Optimized for compact PCB footprint designs, this 3.1 Combo connector features single-layer board-mount construction with standard cable exit orientation. The standard contact...

Request a Quote →

3.1 Combo interface10Gbps SuperSpeed+ rate

Single-layer PCB designSingle-row contact array

90° exit angleStandard cable exit

USB 3.1 Gen 2 certifiedStandard 2.54mm pitch profile

Technical Specifications

USB Version	USB 3.1
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Brass, half gold-tin plated
Insulator Material	PBT+LCP, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	10Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.1 Combo connector supporting standard 3.1 data protocols
Single-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Combo-port design consolidates multiple interfaces into a single PCB footprint
Suitable for digital signage, kiosks, and information display systems
Robust mechanical structure for reliable mating-cycle durability

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

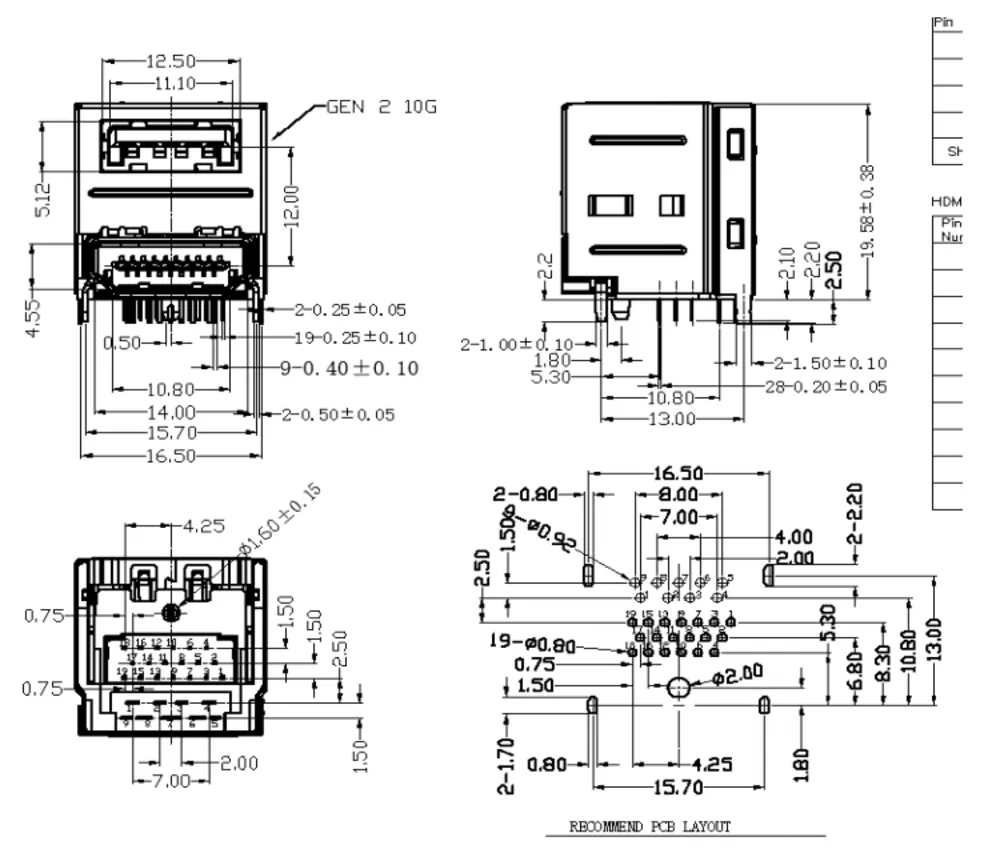

Product Drawing

Optimized for compact PCB footprint designs, this 3.1 Combo connector features single-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.1 signaling requirements for data and power delivery. The combo-port design consolidates multiple USB interface standards into a single PCB footprint, reducing board space and BOM complexity. Polarized housing design ensures correct orientation during cable mating, reducing field service risk. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
