USB 3.1 Triple-Layer Connector – C071289

Name: USB 3.1 Triple-Layer 90 Degree Connector - C071289 | GSCONN
Brand: GSCONN

USB 3.110GbpsBoard-Mount

Tags:

#Triple-Layer #USB 3.1 #USB Connector

Optimized for compact PCB footprint designs, this 3.1 Standard connector features triple-layer board-mount construction with standard cable exit orientation. The standard contact...

Request a Quote →

3.1 Standard interface10Gbps SuperSpeed+ rate

Triple-layer PCB designTriple-stack pin design

90° exit angleStandard cable exit

USB 3.1 Gen 2 certifiedStandard 2.54mm pitch profile

Technical Specifications

USB Version	USB 3.1
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Triple-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	U2 contacts: Phosphor Bronze, half gold-tin plated; U3 contacts: Brass, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, tin-plated terminals
Data Speed	10Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.1 Standard connector supporting standard 3.1 data protocols
Triple-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Suitable for security systems, surveillance, and access control hardware
Compatible with selective wave soldering for mixed-technology PCB assemblies

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

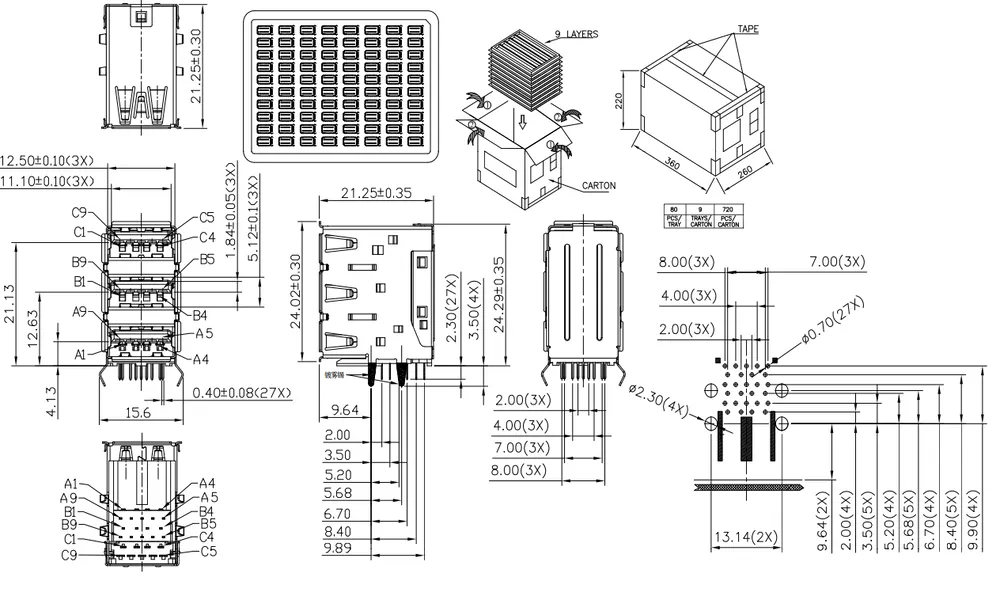

Product Drawing

Optimized for compact PCB footprint designs, this 3.1 Standard connector features triple-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.1 signaling requirements for data and power delivery. PA66 + glass-fiber reinforced housing provides mechanical strength and heat resistance for long-term reliability. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
