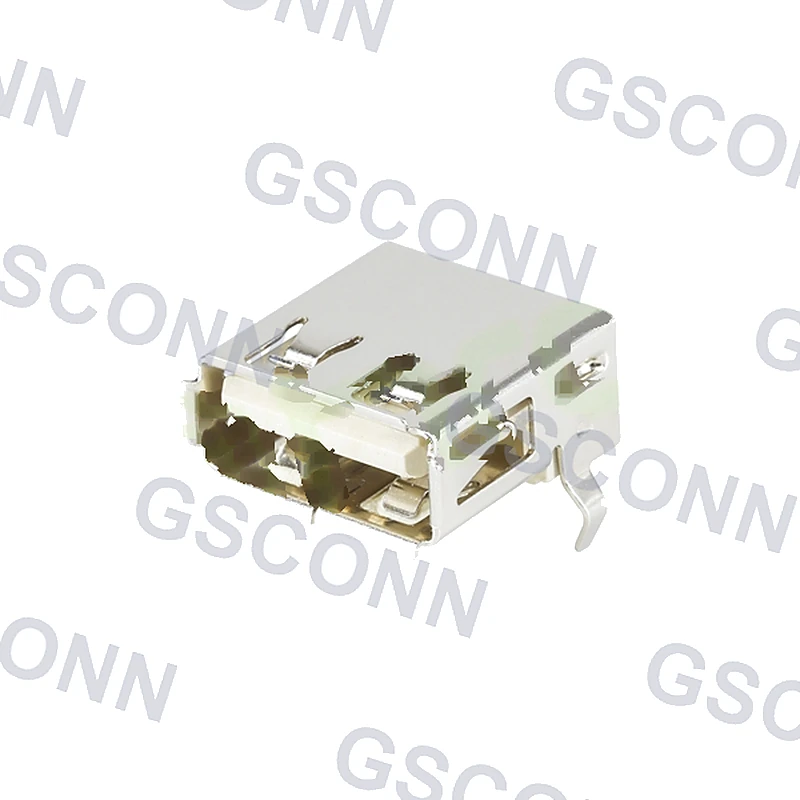

USB Socket Rolled-Edge USB Female Connector Front-Insert Rear-Adhesive USB Interface – GSC-USA-0029
USB4 PinSMTRight Angle
GSC-USA-0029 is a USB 4-contact connector, 13.7×6.9×14.3 mm, horizontal, 4P (surface-mount), USB socket. GSCONN part GSC-USA-0029.
Surface MountSMT termination
3,000 CyclesRated mating life
4 PinContact count
Technical Specifications
| Series | USB JACK |
| Type | Front insertion, rear attachment / 4P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 3.57 kgf MAX |
Key Features
- 13.7×6.9×14.3 mm
- horizontal
- 4P (surface-mount)
- USB socket
Applications
- Consumer electronics
- USB peripherals and hubs
- Charging devices
- Industrial control equipment
Drawing & Dimensions
GSC-USA-0029 is a USB 4-contact connector, 13.7×6.9×14.3 mm, horizontal, 4P (surface-mount), USB socket.
| Series | USB JACK |
|---|---|
| Type | Front insertion, rear attachment / 4P |
| Mating cycles | 3,000 cycles |
| Insertion / Removal force | 3.57 kgf MAX |
