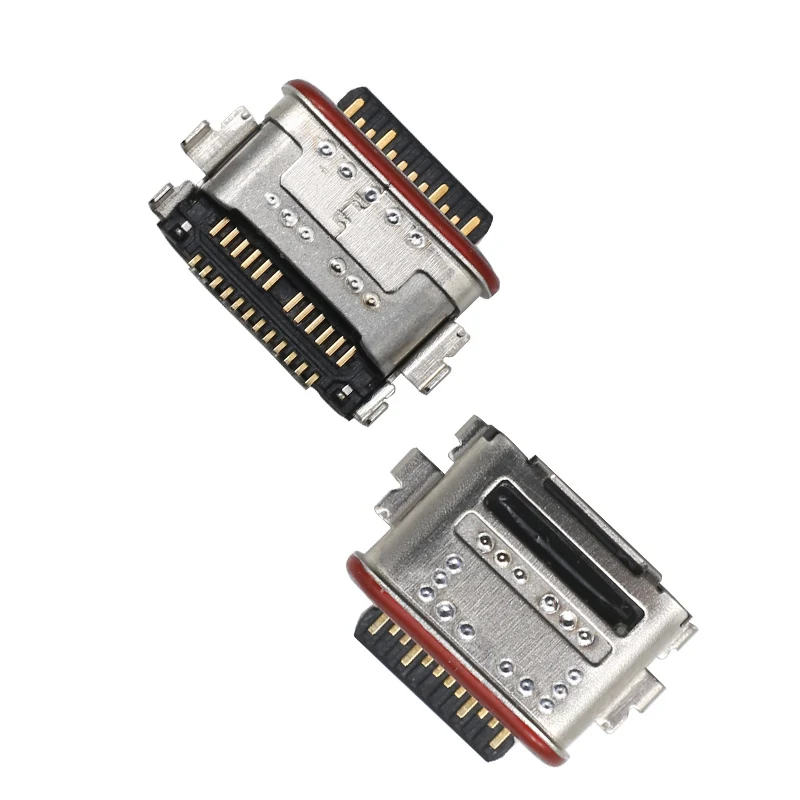

USB4.0 40Gbps 24pin USB TYPE-C WATERPROOF CONNECTOR MID-Mount CONN – GSC-TYP-0091
USB 4.0Type C24 PinWaterproof

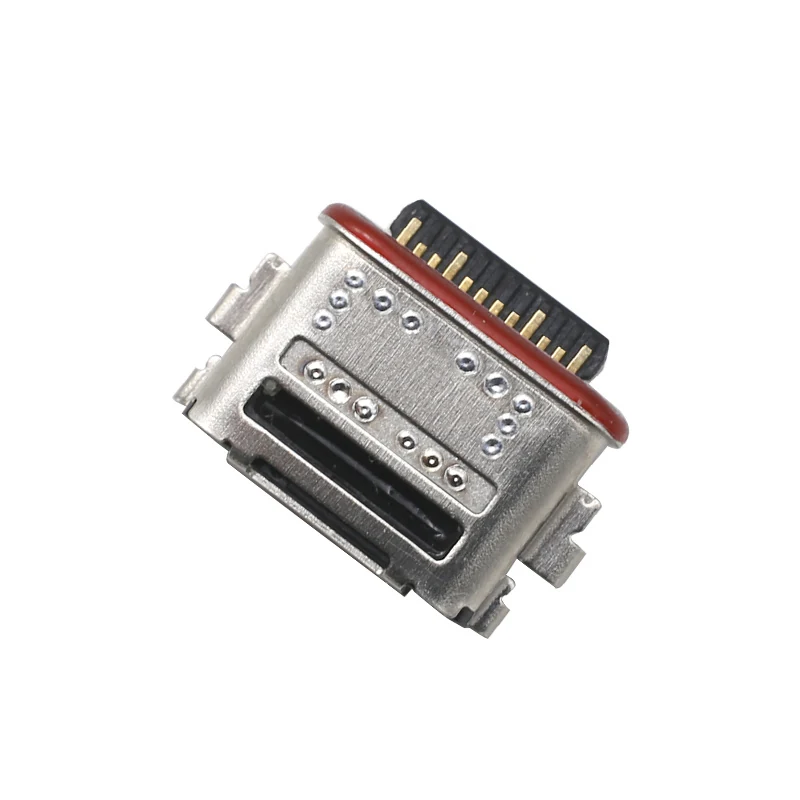

GSC-TYP-0091 is a 24 contacts, Type C, USB 4.0, female connector, with mid-mount conn mounting, side entry, waterproof construction. GSCONN part GSC-TYP-0091.
Technical Specifications
| Connector style | Type C |
| Interface | C |
| USB version | 4.0 |
| Gender | female |
| Number of contacts | 24PIN |
| PCB mount type | mid-mount conn |
| Entry type | Side |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 24 contacts
- Type C interface
- USB 4.0
- female connector
- mid-mount conn termination
- Side entry
- LCP housing
- High conductivity copper contact system
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices
Drawing & Dimensions
GSC-TYP-0091 is a 24-contact Type C female connector, using mid-mount conn mounting with Side entry. The housing is LCP; the contact system is High conductivity copper; the shell is SUS304. Electrically it is rated 5A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -30°C to +85°C. Mechanically it offers mating durability of 10000, contact resistance 50mΩ Max. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| USB version | 4.0 |
| Gender | female |
| Number of contacts | 24PIN |
| PCB mount type | mid-mount conn |
| Entry type | Side |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
