Vertical SMT USB 3.0 Single-Layer 180 Degree Connector – L000668
USB 3.05GbpsVertical SMT
Built for industrial and commercial USB applications, this 3.0 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board...
3.0 Standard interface5Gbps high-speed differential pairs
Single-layer PCB designSingle-row pin configuration
180° exit angleStraight-up cable routing
USB 3.0 SuperSpeed certifiedHigh-density PCB layout
Technical Specifications
| USB Version | USB 3.0 |
| Connector Type | USB Connector |
| Mount Type | Vertical SMT |
| Layers | Single-Layer |
| Orientation | 180 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 5Gbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 3.0 Standard connector supporting standard 3.0 data protocols
- Single-layer PCB design with 180° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- SMT termination supports smt assembly processes
- Compatible with industrial HMIs, control panels, and operator interfaces
- Suitable for digital signage, kiosks, and information display systems
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

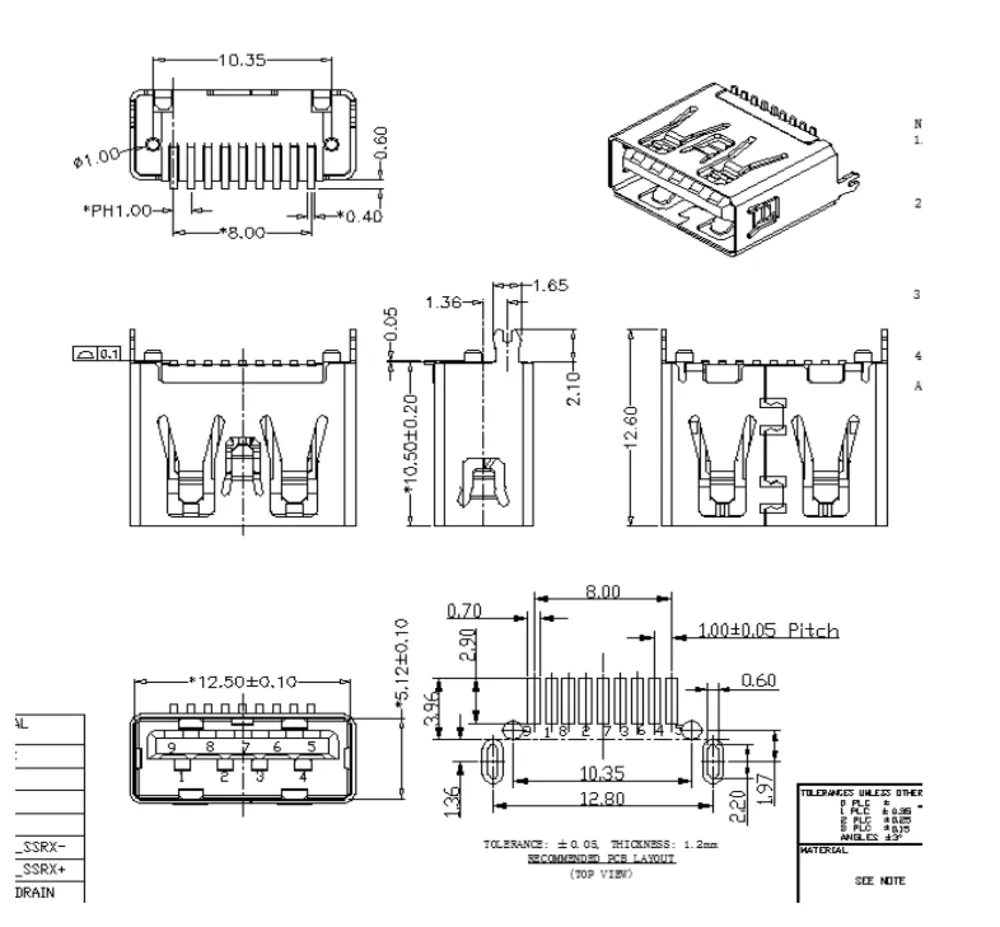

Product Drawing
Built for industrial and commercial USB applications, this 3.0 Standard connector features single-layer board-mount construction with vertical cable exit for in-line board placement. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. Operating temperature range supports -40°C to +85°C industrial deployment across harsh environments. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
