What is the operating temperature range?

Operates from -40°C to +125°C.

Is this connector waterproof?

Yes, rated IP67 for dust and water protection.

What data speed does it support?

Supports up to 480Mbps data transfer.

What certifications does this product have?

Certified CE, RoHS, REACH for international compliance.

Waterproof USB 2.0 + Type-C 16P Connector – C071313

Name: USB 2.0 Single-Layer 90 Degree Type-C - C071313 | GSCONN
Brand: GSCONN

USB 2.0480MbpsBoard-Mount

Tags:

#16 Pin #USB 2.0 #USB Connector #USB Type-C #Waterproof

Designed for OEM board-mount integration, this 2.0 Type-C connector features standard board-mount construction with standard cable exit orientation. The 16P configuration supports...

Request a Quote →

2.0 Type-C interfaceUSB 2.0 baseline throughput

Single-layer PCB designStandard pin configuration

90° exit angleStandard cable exit

480Mbps full-speed signalingStandardized 0.1" pin pitch

Technical Specifications

USB Version	USB 2.0
Connector Type	USB Type-C
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	90 Degree
Pin Configuration	16-Pin
Rated Current	7A
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Copper Alloy, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	480Mbps
Operating Temperature	-40°C to +125°C
Certifications	CE, RoHS, REACH

Key Features

USB 2.0 Type-C connector supporting standard 2.0 data protocols
Single-layer PCB design with 90° cable exit for flexible board integration
16P contact pin configuration for full USB signaling compatibility
IP67-rated sealed construction for water and dust resistance in outdoor installations
Combo-port design consolidates multiple interfaces into a single PCB footprint
Suitable for IoT gateway and edge-computing data acquisition
Operating temperature -40°C to +85°C for industrial and automotive deployment

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

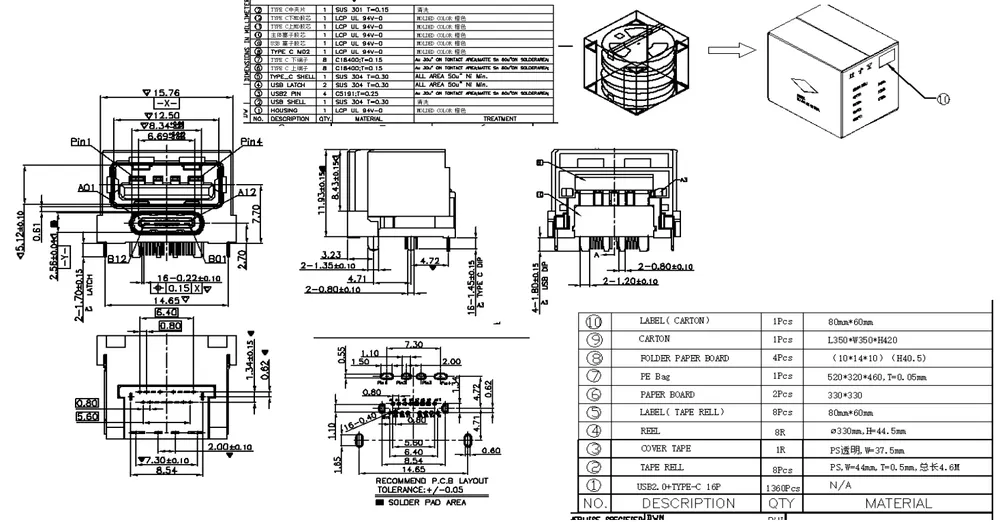

Product Drawing

Designed for OEM board-mount integration, this 2.0 Type-C connector features standard board-mount construction with standard cable exit orientation. The 16P configuration supports full USB 2.0 signaling requirements for data and power delivery. With IP67 sealed construction, this connector maintains signal integrity in moisture and dust exposure environments. The combo-port design consolidates multiple USB interface standards into a single PCB footprint, reducing board space and BOM complexity. Operating temperature range supports -40°C to +85°C industrial deployment across harsh environments. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
