Waterproof Vertical Type-C 16P Connector – L000676
USB 2.0480MbpsVertical SMT
Designed for OEM board-mount integration, this None Type-C connector features standard board-mount construction with vertical through-hole termination for up-routed cables. The...
None Type-C interfaceUSB standard speed
None-layer PCB designStandard pin configuration
Vertical° exit angleVertical through-hole exit
USB standard compliantStandard 2.54mm pitch profile
Technical Specifications
| USB Version | USB 2.0 |
| Connector Type | USB Type-C |
| Mount Type | Vertical SMT |
| Layers | Single-Layer |
| Orientation | 90 Degree |
| Pin Configuration | 16-Pin |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 480Mbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- None-layer PCB design with Vertical° cable exit for flexible board integration
- 16P contact pin configuration for full USB signaling compatibility
- IP67-rated sealed construction for water and dust resistance in outdoor installations
- Compact through-hole PCB footprint supports high-density board layouts
- Compatible with 3D printers, CNC controllers, and maker platforms
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

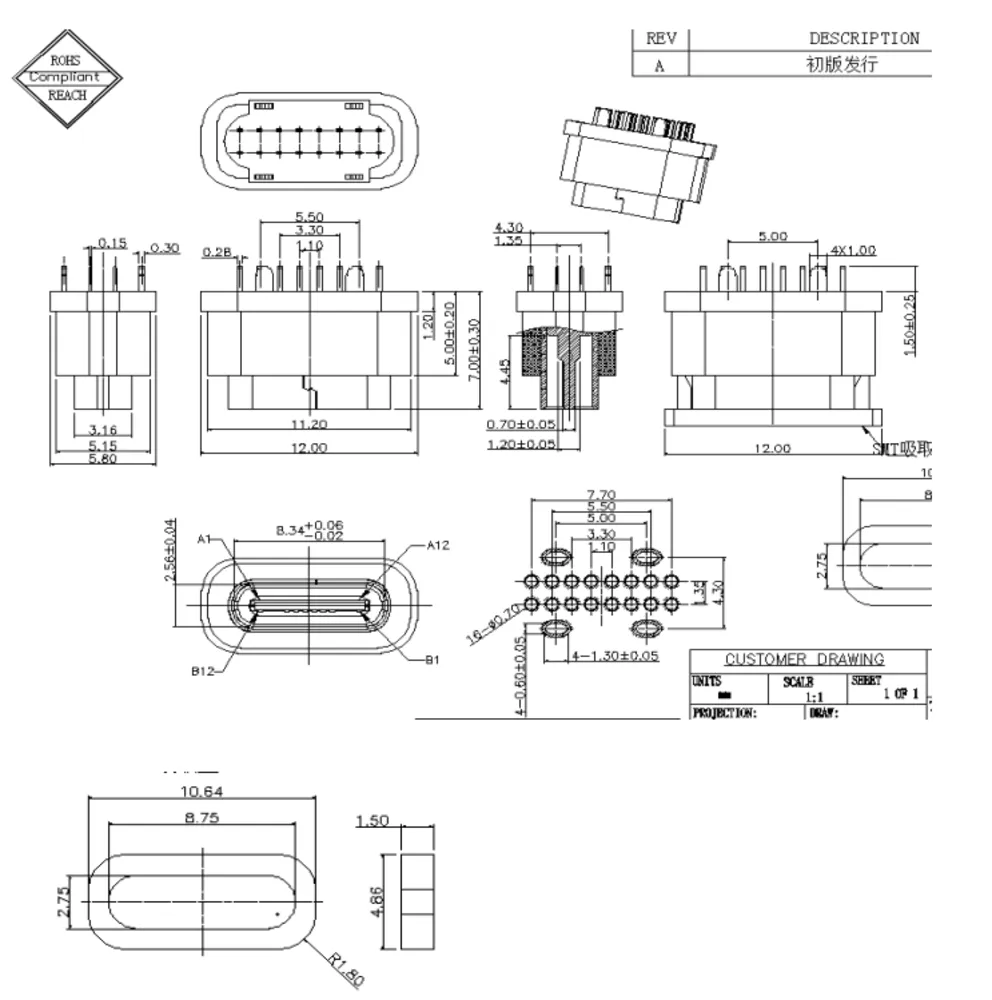

Product Drawing
Designed for OEM board-mount integration, this None Type-C connector features standard board-mount construction with vertical through-hole termination for up-routed cables. The 16P configuration supports full USB None signaling requirements for data and power delivery. With IP67 sealed construction, this connector maintains signal integrity in moisture and dust exposure environments. Polarized housing design ensures correct orientation during cable mating, reducing field service risk. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
