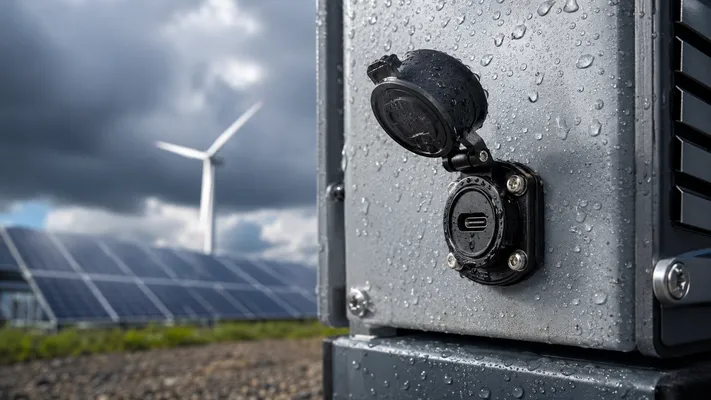

USB Connector for Outdoor & Renewable Energy — Solar, Wind, Kiosk
Quick Summary
| Application | USB Function | Key Requirements |
|---|---|---|
| Solar inverter | Configuration, firmware, data logging | IP65, -40–85°C, UV-resistant |
| Wind turbine controller | Diagnostics, parameter upload | IP67, vibration (20g+), salt spray |
| Outdoor kiosk / digital signage | Media upload, touchscreen, payment | Anti-vandal, IP65, 10+ year life |
| Smart agriculture | Soil sensor gateway, camera | IP68 (submersion), wide temp |
| Weather station | Data logger, modem | IP67, low power, -40–85°C |
1. Outdoor Electronics: USB’s Role
USB in outdoor equipment isn’t for power delivery. It’s for:
| Function | Data rate | USB version |
|---|---|---|
| Configuration and setup (commissioning) | <1 Mbps | USB 2.0 |
| Firmware update | 480 Mbps | USB 2.0 |
| Data log download | 5–480 Mbps | USB 2.0 or 3.0 |
| External storage (media player for signage) | 5 Gbps | USB 3.0 |
| 4G/5G modem | 480 Mbps | USB 2.0 |
| Camera (surveillance, agriculture) | 5 Gbps | USB 3.0 |
| Touchscreen / HID (kiosk) | 12 Mbps | USB 2.0 |
For most outdoor applications, USB 2.0 is adequate. USB 3.0 adds value only for media playback (signage) and camera data (agriculture, surveillance).
Scope Clarification
In outdoor renewable equipment, USB should be positioned accurately: USB should be described primarily as a configuration, diagnostics, firmware, or low-to-moderate-power accessory interface unless the design explicitly implements USB Power Delivery for higher power. This distinction matters for engineering credibility and prevents the article from overstating USB’s role in safety-critical or real-time control paths.
2. Solar Inverter (String + Central)
Application Profile
| Parameter | Residential (3–10 kW) | Commercial (20–100 kW) | Utility (500 kW+) |
|---|---|---|---|
| Location | Outdoor wall/roof | Outdoor pad | Outdoor array |
| USB ports needed | 1–2 | 2–3 | 3–4 |
| Access | Service panel (installer only) | Service panel (technician) | Locked service panel |
| Life expectancy | 10–15 years | 15–20 years | 20–25 years |
USB Functions
- Commissioning: USB-to-RS485 adapter connects installer laptop to inverter. USB 2.0 Type-A, service-accessible.
- Firmware update: OTG-capable USB host. Flash drive with firmware image. USB 2.0 sufficient.
- Data logging: Inverter logs DC/AC power, MPPT tracking, fault events to USB flash drive. USB 2.0 sufficient.
- Remote monitoring: USB-to-4G modem gateway for cloud-based monitoring (SunSpec, Modbus TCP). USB 2.0.
Environmental Requirements
| Condition | Value | Connector Impact |
|---|---|---|
| Temperature (direct sun) | Enclosure interior up to +70°C | Industrial temp (-40–85°C) minimum |
| UV (outdoor exposure) | 15+ years, equator: 200+ kLy | LCP housing (UV-resistant), no PBT |
| Humidity (tropical) | 90–100% RH, condensation | IP65 minimum, conformal coating |
| Salt (coastal) | IEC 60068-2-52 severity 3 | Stainless steel shell, gold flash 1.0µ” |
| Thermal cycling | 20–30°C diurnal × 365 × 15 years = 5,475–8,212 cycles | Through-hole mounting, LCP housing |
GSConn recommendation: Industrial stacked USB 2.0 (2 ports, -40–85°C, LCP), through-hole mounting. IP65 panel-mount version for externally accessible service port. Stainless steel shell for coastal installations.
3. Wind Turbine Controller
Unique Challenges
Wind turbines add vibration that solar doesn’t have:
| Condition | Value |
|---|---|
| Tower vibration | 5–50 Hz, 2–10g RMS (nacelle) |
| Pitch/yaw system vibration | 20–50 Hz, 5–15g RMS |
| Temperature (nacelle interior) | -30°C to +60°C |
| Humidity | 10–95% RH (offshore: salt spray) |
| Accessibility | Climb tower (1–4 hours) — connector reliability critical |
USB Function in Wind
Wind turbine controllers (Bachmann, DEIF, Siemens Gamesa platforms) use USB for:
- Parameter upload: Turbine-specific parameters (blade pitch profiles, power curves) loaded via USB during commissioning
- SCADA gateway configuration: USB-to-Ethernet or USB-to-fiber gateway setup
- Event log retrieval: Fault records, vibration monitoring data
- Firmware update: Controller firmware via USB flash drive
Critical requirement: USB connection typically should survive tower vibration without intermittent disconnection. Friction-lock USB will fail.
GSConn recommendation: Locking stacked USB 2.0 (screw lock), through-hole mounting, industrial temp, LCP housing. For offshore wind, add stainless steel shell and IP67 panel-mount.
See Vibration Resistant Dual USB Connector for test data and mechanical options.
4. Outdoor Kiosk / Digital Signage
Application Profile
| Parameter | Specification |
|---|---|
| Examples | EV charger display, bus stop info panel, retail kiosk, wayfinding |
| USB function | Media upload, touchscreen interface, payment terminal, printer |
| Access | Public or semi-public |
| Vandalism risk | Moderate to high |
| Life expectancy | 5–10 years |
USB Ports
| Port | Function | Access | Protection |
|---|---|---|---|
| Service USB (media update) | Flash drive for playlist/video | Technician only, service door | Locking door + IP65 when closed |
| Touchscreen USB | Internal, connects touch controller to media player | Internal | Standard internal |
| Payment terminal USB | Internal, connects to card reader | Internal | Standard internal |
| Printer USB (receipt/ticket) | Internal | Internal | Standard internal |
Front panel USB (service port): This is the challenging one. Must be IP65 when access door is closed, but accessible when open for service. Anti-vandal cover (metal flap with lock) recommended.
GSConn recommendation: IP65 panel-mount USB Type-A with metal anti-vandal cover. Internal: stacked USB 2.0 (touchscreen + payment) + single USB 3.0 (media player SSD).
5. Smart Agriculture / Precision Farming
Application Profile
| Parameter | Specification |
|---|---|
| Examples | Soil moisture sensor gateway, irrigation controller, drone ground station, livestock monitoring |
| USB function | Sensor data aggregation, configuration, camera (drone) |
| Environment | Outdoor, exposed to rain, mud, fertilizer, pesticides |
| Cleanability | High — washdown with water jet |
Requirements
| Condition | Value |
|---|---|
| IP rating | IP67 minimum (washdown), IP68 if submerged (irrigation canal) |
| Chemical resistance | Fertilizer (ammonium nitrate), pesticide (organophosphates) |
| Temperature | -20°C to +65°C (soil temperature range) |
| Vibration | Low to moderate (vehicle-mounted, not continuous) |
| Mating cycles | Low (<500 over life), but typically should seal reliably every time |
GSConn recommendation: IP67 panel-mount USB, screw-lock, LCP housing (superior chemical resistance to PBT). Stainless steel shell for fertilizer/pesticide exposure. Spring-loaded tethered cover.
6. Material Selection for Outdoor USB
| Material | UV Resistance | Chemical Resistance | Temp Range | Cost | Best For |
|---|---|---|---|---|---|
| PBT (standard) | Poor (yellows, brittle) | Poor (attacked by organics) | -30 to +80°C | $ | Indoor only |
| LCP | Excellent | Excellent | -50 to +130°C | $$$ | All outdoor (recommended) |
| PPS | Excellent | Excellent | -50 to +150°C | $$$$ | Extreme outdoor (extended) |
| Stainless steel shell | Excellent | Good (316 > 304) | -200 to +300°C | $$ | Coastal, marine, agriculture |
Rule: outdoor USB = LCP housing + stainless steel shell + gold flash 1.0µ” minimum.
7. GSConn Outdoor Series
| Application | Part | Key Features |
|---|---|---|
| Solar inverter (service port) | IP65 panel-mount USB 2.0 Type-A | LCP, UV-resistant, -40–85°C |
| Solar inverter (internal) | Industrial stacked USB 2.0 | Through-hole, -40–85°C |
| Wind turbine | Locking stacked USB with screw lock | Vibration resistant, through-hole, LCP |
| Outdoor kiosk | IP65 panel-mount with metal cover | Anti-vandal, locking cover |
| Smart agriculture | IP67 panel-mount, stainless steel | Chemical resistant, washdown-proof |
| Weather station | IP67 USB Type-A mini panel-mount | Compact, low-profile, LCP |
GSConn’s outdoor-grade USB connectors use LCP housing for UV and chemical resistance, stainless steel shells for corrosion protection, and IP65/IP67 panel-mount designs for ingress protection across solar, wind, kiosk, and agriculture applications. Extended temperature (-40°C to +105°C) available on custom order for extreme environments.
