How many mating cycles do medical connectors need?

Patient-monitoring and surgical-tool connectors typically require 100,000+ mating cycles, versus 500–5,000 for industrial connectors. This demands wear-resistant contact plating (gold over nickel) and low-friction polymer housings.

What sterilization methods must medical connectors survive?

Common methods include autoclave (134°C steam), EtO gas, gamma irradiation (25–50 kGy), and chemical wipe-down (isopropyl, bleach, or quaternary ammonium). Connectors must be qualified for the specific sterilization cycles used in the device reprocessing flow.

What is the difference between MOPP and MOOP isolation?

MOPP (Means of Patient Protection) requires higher creepage and clearance distances for connectors that contact patients — typically 4 mm / 1.5 mm for 2 MOPP. MOOP (Means of Operator Protection) is for operator-only circuits with relaxed distances, around 2.5 mm / 1 mm for 2 MOOP.

Do medical connectors need biocompatibility certification?

Yes — patient-contacting materials require USP Class VI or ISO 10993-5/10 biocompatibility testing for cytotoxicity, sensitization, and irritation. Operator-only devices typically do not.

What is the IP rating for medical connectors?

Medical connectors are commonly rated IP54 to IP67 depending on the cleaning method. Wipe-down devices typically need IP54 minimum; devices exposed to fluid splashes or submersion need IP65–IP67 and may also require autoclave compatibility.

Connector Basics

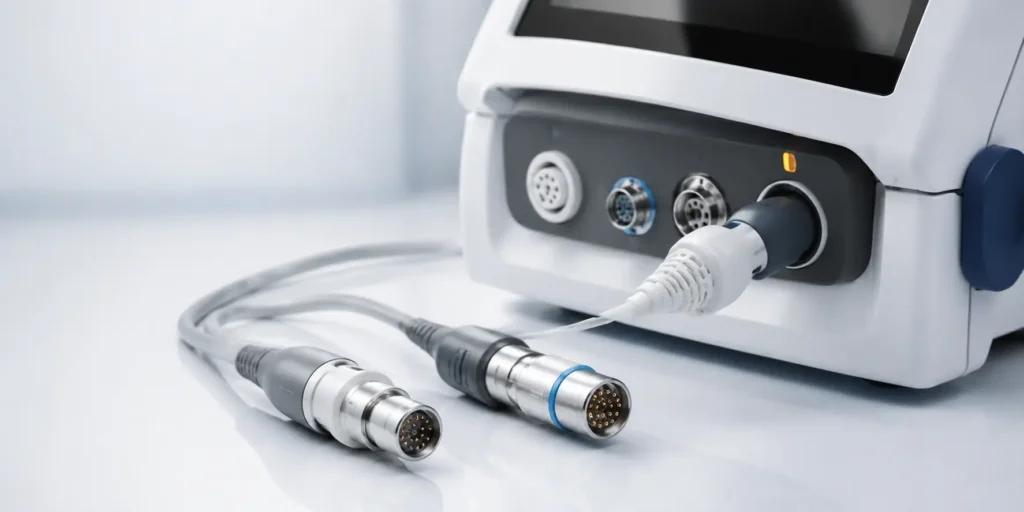

Medical Device Connector Guide: Reliability, Cleaning, and Safety

September 4, 2026 3 min read

Tags:

#autoclavable connector #high cycle connector #Iec 60601 #medical connector #patient cable connector

Medical connector selection begins with the device risk analysis and intended use. Patient proximity, cleaning or sterilization method, mating frequency, touch safety, misconnection risk, fluid exposure, and traceability can matter more than pin count or package size.

Quick Reference

Application	Connector Type	Key Requirement
Patient monitoring (ECG/SpO2)	Sealed push-pull or latch	100K+ mating cycles, cleanable
Diagnostic imaging (MRI/CT)	Custom high-density	EMI shielding, high pin count
Surgical instruments	Autoclavable connectors	135°C autoclave, 1000+ cycles
Infusion pumps	Sealed latch	Fluid resistance, foolproof
Portable monitors	Push-pull	Drop resistance, compact
Telemetry (wearable)	Low-profile B2B	Skin-safe, miniaturized
Test fixtures	High-cycle connector	1M+ cycles, gold contacts

1. Why Medical Connectors Are Different

Medical device connectors face requirements beyond any other industry:

Requirement	What It Means
Biocompatibility	Materials safe for patient contact (ISO 10993)
Sterilization	Survive autoclave (135°C), EtO, or gamma radiation
Cleaning	Withstand disinfectants (alcohol, bleach)
Foolproof design	Impossible to misconnect (patient safety)
High reliability	Fail-safe — connector failure is a patient risk
Traceability	Full material documentation (ISO 13485)
100K+ cycles	Repeated plug/unplug by staff

2. Sterilization Compatibility

Sterilization Method	Temperature/Chemical	Connector Requirement
Steam autoclave	134°C, 3 bar	Housing must survive 135°C+ (LCP, PEEK)
Ethylene oxide (EtO)	Chemical gas	Material must not absorb/degrade
Gamma radiation	Ionizing	Radiation-stable polymers
Chemical disinfection	Alcohol, bleach, H2O2	Chemical-resistant housing

Autoclaving is the harshest: 134°C steam under pressure for 20 minutes, repeated 1000+ times over device life. Standard PA66 and PBT fail — LCP or PEEK required.

3. Standards and Certification

Standard	Scope
ISO 10993	Biocompatibility (cytotoxicity, sensitization)
IEC 60601-1	Medical electrical safety
ISO 13485	Quality management for medical devices
IPC/WHMA-A-620	Cable and wire harness requirements
RoHS	Restricted substances
UL 60601-1	NA medical safety

4. Mating Cycles: The 100K Challenge

Medical connectors (especially patient cables) see extreme mating cycles:

Application	Cycles Per Day	Annual Cycles
Hospital patient monitor	10–20	3,000–6,000
Surgical instrument	5–10	1,500–3,000
Test fixture	50–200	15,000–60,000

Over a 10-year device life, patient connectors must survive 30,000–60,000 cycles. Standard connectors rated 500 cycles fail within months. Medical-grade connectors need:
– Thick gold (3µ”+) or gold/palladium plating
– Reinforced contacts
– Lubricated contact surfaces

5. Design-Control Checklist

Document whether the connector is patient-accessible, the applied-part classification, required creepage/clearance, touch-proofing, keyed or color-coded misconnection controls, cleaning and sterilization cycles, fluid compatibility, expected mating cycles, strain relief, cable flex life, and supplier traceability. Validate the finished cable assembly and device—not only the connector component—under the applicable regulatory and risk-management process.

Biocompatibility, sterilization, and medical electrical safety are use- and material-specific. Supplier documentation supports the device file but does not by itself certify the finished medical device.

6. GSConn Medical Connector Offerings

Series	Application	Features
MED-PUSH	Patient monitoring	Push-pull, 100K cycles, cleanable
MED-AUTO	Surgical instruments	Autoclavable (LCP), 135°C
MED-B2B	Wearable / telemetry	Low-profile, biocompatible
MED-FIX	Test fixtures	1M cycles, gold 3µ”
MED-SEAL	Fluid environments	IP67, chemical resistant

All GSConn medical connectors offer ISO 10993 biocompatibility documentation, sterilization compatibility data, and ISO 13485 manufacturing traceability on request.

GSConn medical device connectors cover patient monitoring (push-pull, 100K cycles), surgical (autoclavable LCP), wearable (biocompatible B2B), and test fixtures (1M cycles). ISO 10993 biocompatibility and sterilization compatibility data available. Full traceability per ISO 13485.
