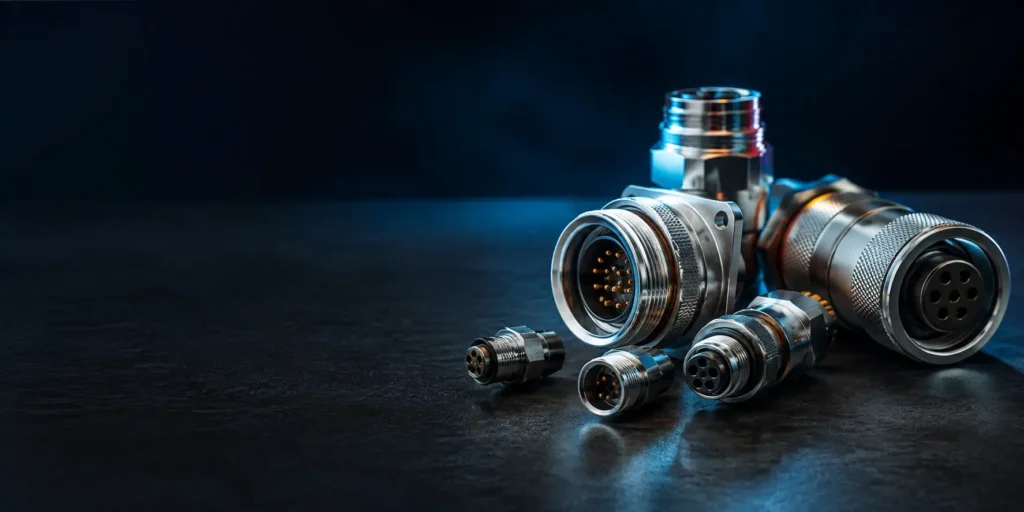

Circular Connector Selection Guide: Types, IP Ratings, and Applications
Choosing a circular connector is not just a matter of shell size. The correct choice must match the electrical load, signal type, environment, mating frequency, cable construction, and locking method. This guide gives engineers a practical way to narrow the field before comparing part numbers.
Quick Reference
| Circular Series | Shell Size | Contacts | IP Rating | Best For |
|---|---|---|---|---|
| M8 | 8mm | 3–4 | IP67 | Sensors, compact |
| M12 | 12mm | 3–17, depending on coding | IP67/IP68 | Industrial automation, EtherCAT, PROFINET |
| M16 | 16mm | 3–12 | IP67 | Motors, general industrial |
| M23 | 23mm | 6–19 | IP67 | Servo motors, power + signal |
| MIL-DTL-5015 | 12–40 | 1–85 | Varies | Military, aerospace |
| MIL-DTL-38999 | 9–25 | 6–128 | IP67 | Aerospace, high reliability |
| Deutsch DT | 14–22 | 2–12 | IP68 | Automotive, off-road, marine |
| Heavy-duty circular | 20–40 | 4–50 | IP68 | Industrial power, harsh |
1. What Is a Circular Connector?
A circular connector has a cylindrical shell and circular mating interface. The round shape distributes mating force evenly, provides inherent sealing (O-rings around the circumference), and allows a twist-lock or bayonet latching mechanism.
Why Circular Instead of Rectangular
| Factor | Circular | Rectangular |
|---|---|---|
| Sealing | ✅ O-ring around circumference — excellent | More complex gasket sealing |
| Vibration locking | ✅ Threaded/bayonet — secure | Latch or screw, less uniform |
| Contact density | Lower (round face area) | Higher (rectangular face) |
| Size | Round, uniform | Rectangular, wider |
| Standardization | Strong (M8/M12/MIL series) | Varies by family |
| Cost | Higher (precision machining) | Lower |
2. The Four Latching Mechanisms
| Latching | Release | Vibration Rating | Use |
|---|---|---|---|
| Threaded (screw) | Unscrew | Excellent | MIL-DTL, Deutsch, heavy-duty |
| Bayonet | Twist 1/4 turn | Very good | MIL-DTL-38999, M12 |
| Push-pull | Pull sleeve | Good | Medical, data, panel mount |
| Snap / latch | Press tab | Fair | Compact, consumer |
Threaded is the most secure — the nut provides mechanical locking that resists vibration and accidental disconnection. For heavy vibration (machinery, off-road), always choose threaded or bayonet.
3. IP Ratings for Circular Connectors
The circular design makes high IP ratings achievable:
| IP Rating | Test | Circular Connector Use |
|---|---|---|
| IP67 | 1m immersion, 30 min | Standard industrial, outdoor |
| IP68 | Continuous immersion (manufacturer depth/time) | Marine, submersible, washdown |
| IP69K | High-pressure hot water jet | Food processing, washdown |
M12 connectors are commonly offered at IP67, with IP68 or washdown-rated versions available. Always confirm whether the rating applies only when mated and whether the cable entry, panel mounting, and protective cap are included in the tested configuration.
4. Coding and Keying (M12 System)
M12 connectors use letter codes to prevent mismating of different signal types:
| Code | Contacts | Signals | Use |
|---|---|---|---|
| A-coded | 3–5 (12mm) | Sensors, actuators, DC | Standard industrial |
| B-coded | 5 | PROFIBUS, fieldbus | Automation bus |
| C-coded | 3–6 | AC power | Motors, power |
| D-coded | 4 | 100 Mb Ethernet | PROFINET, EtherNet/IP |
| X-coded | 8 | 10 Gb Ethernet | High-speed industrial |
| S/T-coded | 3–4 | AC power (630V) | Industrial power |
| K-coded | 4 | AC power (630V, 16A) | Motors |
5. Applications
| Application | Recommended Circular | Why |
|---|---|---|
| Factory sensor | M8 (3-pin) | Compact, IP67 |
| Industrial Ethernet | M12 D-coded | 100 Mb, vibration-proof |
| 10 Gb industrial | M12 X-coded | 10 GbE, high reliability |
| Servo motor | M23 or M12 K/S-coded | Power + feedback in one |
| Off-road vehicle | Deutsch DT | IP68, vibration, -55°C |
| Marine | Deutsch or marine-grade | Saltwater corrosion |
| Military aircraft | MIL-DTL-38999 | Extreme reliability |
| Food washdown | M12 IP69K | High-pressure cleaning |
6. Selection Checklist
Before requesting a quote or sample, define:
- voltage, current per contact, and required creepage/clearance;
- signal type and target data rate;
- contact count, cable gauge, and shielding requirement;
- operating temperature, chemicals, UV, salt spray, and required IP rating;
- expected vibration, shock, and mating cycles;
- plug/receptacle gender, mounting style, keying, and termination method.
7. GSConn Circular Connector Portfolio
| Series | Type | Contacts | IP | Latching | Features |
|---|---|---|---|---|---|
| CIR-M12-A | M12 A-coded | 3–5 | IP67 | Threaded | Sensors, actuators |
| CIR-M12-D | M12 D-coded | 4 | IP67 | Threaded | PROFINET, Ethernet |
| CIR-M12-X | M12 X-coded | 8 | IP67 | Threaded | 10 GbE |
| CIR-MIL5015 | MIL-DTL-5015 style | 2–48 | IP67 | Threaded | Industrial/military |
| CIR-DT | Deutsch DT compatible | 2–12 | IP68 | Wedge lock | Automotive, marine |
GSConn circular connectors cover M12 (A/D/X-coded), MIL-DTL-5015 style, and Deutsch DT compatible series. Threaded coupling, IP67/IP68 ratings, and industrial temperature ranges. Custom shell sizes and contact arrangements available.
