What is the difference between M12 A-coded and D-coded connectors?

A-coded M12 connectors carry 3–5 contacts for sensors, actuators, and DC signals. D-coded M12 connectors have 4 contacts specifically for 100 Mb industrial Ethernet (PROFINET, EtherNet/IP). Coding prevents mismating between the two.

Can M12 connectors carry 10 Gigabit Ethernet?

Yes — X-coded M12 connectors carry 8 contacts arranged for Cat6A performance and support 10 Gb Ethernet with full shielding, making them the choice for high-bandwidth industrial networking under IEC 61076-2-101.

Are M12 connectors IP67 or IP68?

Most M12 connectors are rated IP67 when properly mated with the correct cable and torque. IP68 versions are available for submersible or washdown applications — verify the rating in the mated state with caps on unmated sides.

What is T-coded M12 used for?

T-coded M12 connectors carry DC power up to 12 A per pin across 4 contacts. They are used to deliver power to field devices over the same M12 footprint, simplifying cabling in industrial installations.

Should I choose overmolded or field-wireable M12 cables?

Overmolded cordsets offer factory-tested sealing and reliability for production installations. Field-wireable connectors are better for field repair, custom lengths, and prototyping where pre-terminated assemblies are impractical.

Connector Basics

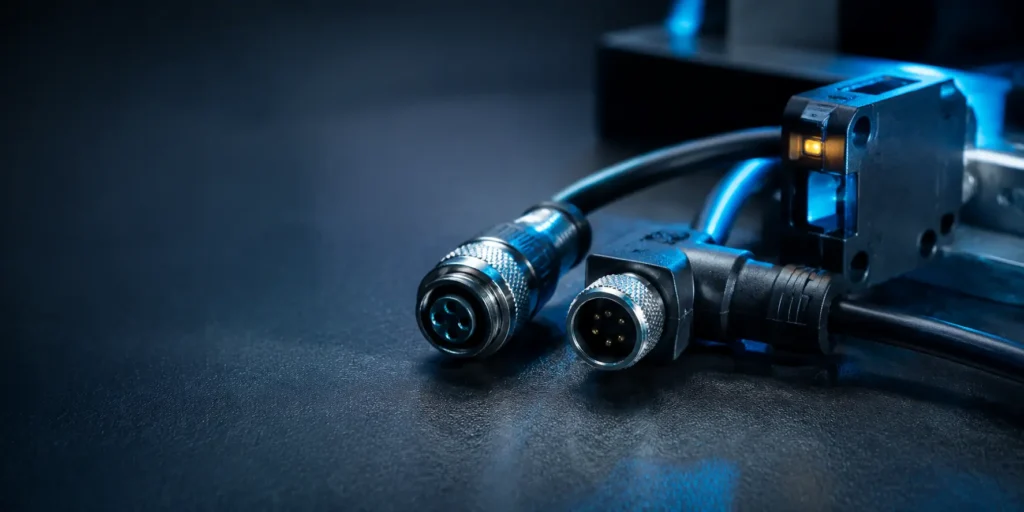

M12 Connector Guide: Coding, Pinouts, Ethernet, and Power

September 4, 2026 4 min read

Tags:

#industrial connector #M12 coding #M12 connector #M12 Ethernet #M12 pinout

M12 is a mechanical interface family, not one universal pinout. Coding, contact count, gender, key orientation, wiring convention, and application standard must all agree. Use this guide to shortlist the correct interface, then confirm the exact drawing and pin assignment from the component manufacturer.

Quick Reference

Code	Contacts	Data Rate	Typical Use
A-coded	3, 4, 5, 8, 12	Signal / low speed	Sensors, actuators, DC power
B-coded	5	Fieldbus	PROFIBUS, interbus
C-coded	3, 4, 6	AC power	Motors, AC power
D-coded	4	100 Mb Ethernet	PROFINET, EtherNet/IP, EtherCAT
X-coded	8	10 Gb Ethernet	High-speed industrial, GigE Vision
S-coded	3, 4	AC power (630V)	Motors, power
T-coded	3, 4	DC power (63V)	DC power distribution
K-coded	4	AC power (630V, 16A)	High-power motors

1. The M12 Standard

M12 is the de facto standard for industrial sensor and actuator connections. The name refers to the 12mm threaded coupling diameter. M12 connectors are screw-locked, IP67-rated, and vibration-proof — exactly what factory automation demands.

Why M12 Dominates Factory Automation

Feature	Benefit
Threaded coupling	Secure, vibration-proof (5g+ tested)
IP67	Dust-tight, 1m immersion
Coding system	Prevents mismating signal types
Standardized	IEC 61076-2-101, global interoperability
Compact	12mm — fits in dense panels
Field-wireable	Repair on site

2. The Coding System (Why It Exists)

The M12 coding system prevents connecting a sensor cable (A-coded) to an Ethernet port (D-coded). Each code has a different key shape — physically impossible to mismate.

How to Identify

Method	What You See
A-coded	Straight key slots, contacts at 0° offset
D-coded	Key slots offset 45°
X-coded	Two pairs of key slots (cross shape)
S/T-coded	Larger contacts (power), offset key

3. Pinouts for Common M12 Codes

M12 A-coded (Sensor/Actuator, 4-pin)

Pin	Sensor (NPN)	Sensor (PNP)
1	Brown (+24V)	Brown (+24V)
2	White (NC)	White (NC)
3	Blue (0V)	Blue (0V)
4	Black (Signal)	Black (Signal)

M12 D-coded (Ethernet, 4-pin)

Pin	Signal
1	TX+ (transmit+)
2	RX+ (receive+)
3	TX- (transmit-)
4	RX- (receive-)

M12 X-coded (10GbE, 8-pin)

Pin	Signal	Pin	Signal
1	DA+	5	DC+
2	DA-	6	DC-
3	DB+	7	DD+
4	DB-	8	DD-

4. Straight vs Right-Angle (Angled)

Type	Space Needed	Strain Relief	Best For
Straight (axial)	Cable exits along axis	Requires bend space	General, panel feed-through
Right-angle (90°)	Cable exits sideways	Better in tight enclosures	Motors, compact panels
45°	Compromise	Moderate	Specialized

5. Overmolded vs Field-Wireable

Type	Assembly	Seal	Cost	Use
Overmolded (pre-terminated)	Factory, plug-and-play	Best (fully sealed)	Higher	Production, high-reliability
Field-wireable (screw/crimp)	On-site, tool needed	Good (O-rings)	Lower	Field repair, custom lengths

6. M12 in Industrial Ethernet

M12 is replacing RJ45 in industrial networking:

Factor	RJ45	M12 D/X-coded
Vibration	❌ Loose in vibration	✅ Threaded lock
IP rating	IP20 typical	IP67
Dust/moisture	Vulnerable	Sealed
Speed	Up to 10 GbE	X-coded: 10 GbE
Use	Office, data center	Factory floor, field

For factory-floor Ethernet, M12 D-coded (100 Mb) and X-coded (10 Gb) are the standard.

Pin assignments can vary with application profiles and viewing direction. Verify the connector-face orientation and the manufacturer drawing before wiring.

7. Selection Checklist

Confirm coding, pin count, male/female side, shield continuity, cable category, conductor gauge, current derating, straight or angled exit, panel or cordset mounting, termination method, IP rating in the installed state, temperature range, and required approvals.

8. GSConn M12 Series

Series	Code	Contacts	Data	IP	Features
M12-A-4	A-coded	4	Signal/DC	IP67	Sensor/actuator standard
M12-D-4	D-coded	4	100 Mb	IP67	PROFINET, EtherNet/IP
M12-X-8	X-coded	8	10 Gb	IP67	High-speed industrial
M12-T-4	T-coded	4	DC power	IP67	Power distribution
M12-FW	Field-wireable	varies	—	IP67	On-site repair

All GSConn M12 connectors are IEC 61076-2-101 compliant with gold-plated contacts and -40°C to +85°C rating.

GSConn M12 connectors cover A, B, C, D, X, S, T, and K codes in straight and right-angle versions, overmolded and field-wireable. IEC 61076-2-101 compliant, IP67 rated, and vibration-tested. Datasheets and 3D models available for all series.
