DC Socket DC Jack DC Power Socket – GSC-DCJ-0068
DC power5 PinRight Angle
GSC-DCJ-0068 is a DC power 5-contact connector, horizontal 5P, Ø1.65 & 2.0 & 2.5 mm (solder-in type) DC socket. GSCONN part GSC-DCJ-0068.
5,000 CyclesRated mating life
5 PinContact count
Technical Specifications
| Series | DC JACK |
| Type | Sinking-plate type / High current |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- Horizontal 5P
- Ø1.65 & 2.0 & 2.5 mm (solder‑in type) DC socket
Applications
- Power adapters and chargers
- Set-top boxes
- Routers and network equipment
- Industrial control equipment

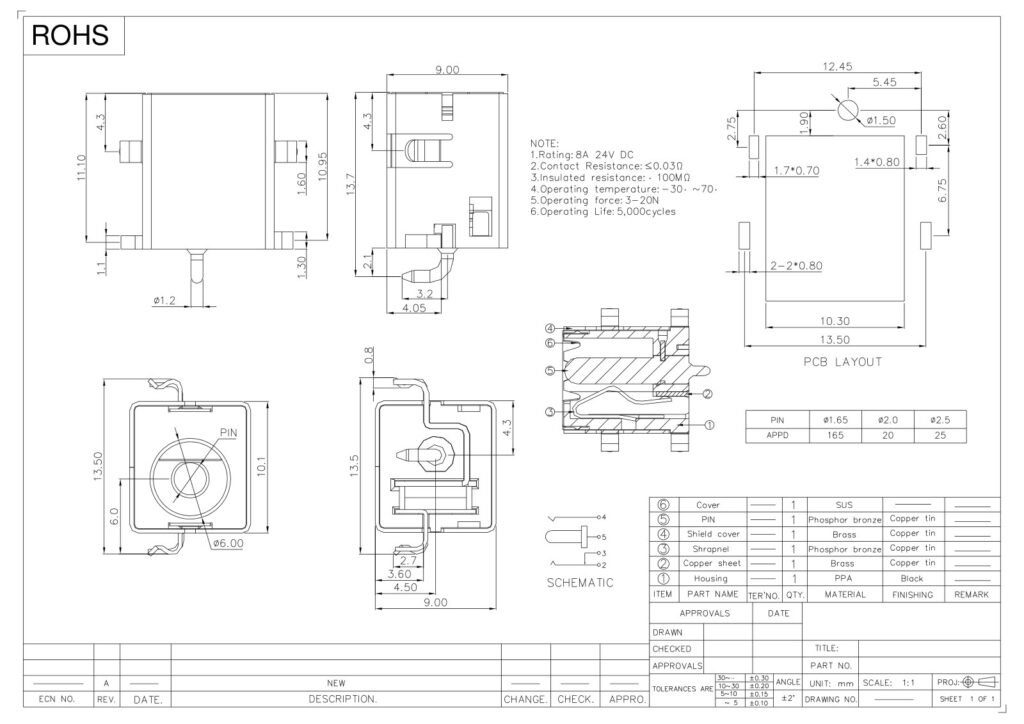

Drawing & Dimensions
GSC-DCJ-0068 is a DC power 5-contact connector, horizontal 5P, Ø1.65 & 2.0 & 2.5 mm (solder-in type) DC socket.
| Series | DC JACK |
|---|---|
| Type | Sinking-plate type / High current |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
