Headphone Jack Four-Pole Audio Jack – GSC-AUD-0015
Audio
GSC-AUD-0015 is an audio connector, 3.6 mm four-pole audio jack with switch (solder-type). GSCONN part GSC-AUD-0015.
5,000 CyclesRated mating life
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | Ø3.6 / Four-pole with switch |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 30 N Min |
Key Features
- 3.6 mm four-pole audio jack with switch (solder-type)
- Dimensions: Ø3.6 / Four-pole with switch
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

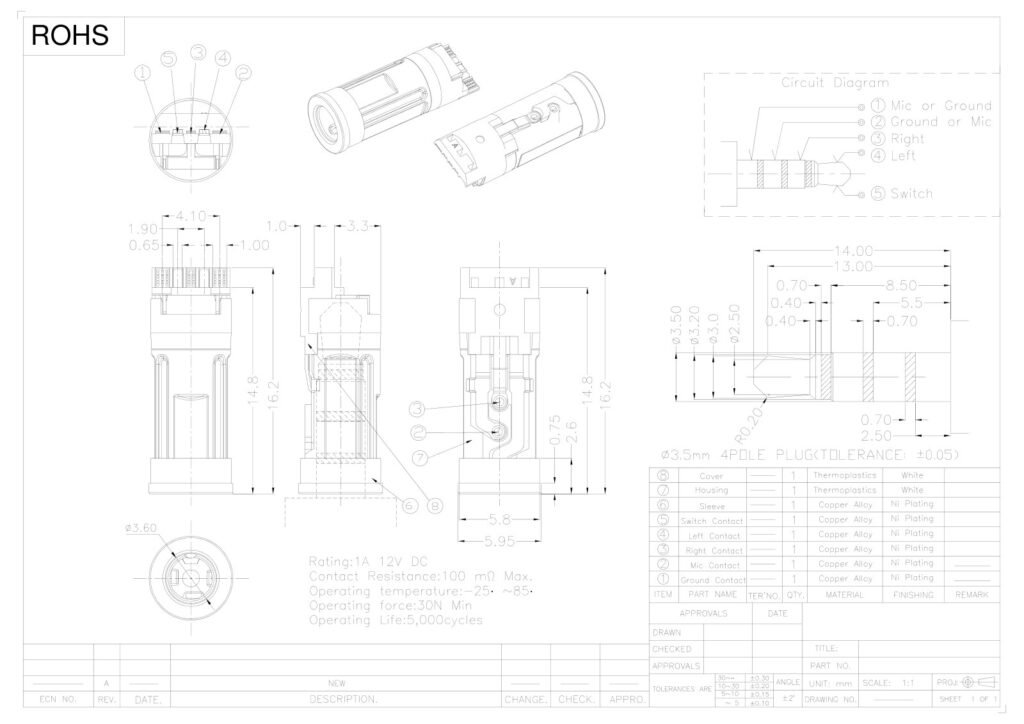

Drawing & Dimensions
GSC-AUD-0015 is an audio connector, 3.6 mm four-pole audio jack with switch (solder-type).
| Series | AUDIO JACK |
|---|---|
| Dimensions | Ø3.6 / Four-pole with switch |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 30 N Min |
