E7xx01500000G PCB Terminal Block 5.0mm Amphenol Anytek | GSCONN
5.0mm15A300VcULus
Built for demanding automation and control applications, this Anytek T-series 5.0mm pitch PCB terminal block delivers 15A continuous current and 300V rated voltage for mid-power...
5.0mm pitch engineering-gradeStandard PCB pitch
15A high-current capacityMid-power equipment wiring
Wave-solder compatibleThrough-hole PCB pins
cULus/VDE listedVDE
Technical Specifications
| Certification | cULus, UL, TUV |
| Number of Poles | 4 |
| Pitch | 5.0mm |
| Rated Current | 15A |
| Rated Voltage | 300V |
| Wire Gauge | AWG14-22 |
Key Features
- Precision 5.0mm centerline spacing optimized for balanced-density PCB layouts
- Rated current 15A continuous and voltage 300V for reliable industrial-grade performance
- Green PA66 housing with brass tin-plated contacts for low contact resistance
- Captive screw clamping mechanism with M2.5 steel screws for vibration-resistant termination
- Compatible with wire sizes AWG22-14 for flexible installation requirements
- Certified to VDE for global market deployment
- Compatible with PCB test fixtures and bed-of-nails test systems
- Suitable for switchgear and power distribution panel wiring
Applications
- Industrial Automation

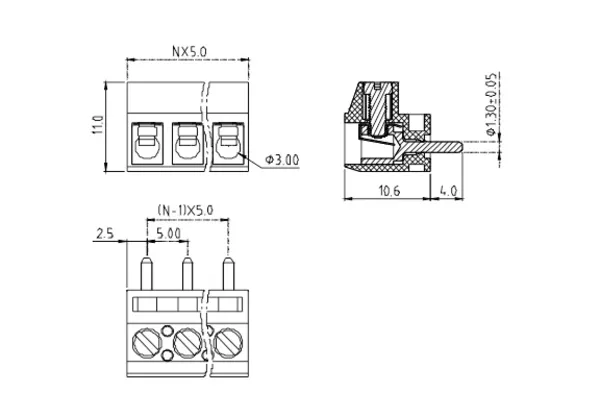

Drawing & Dimensions
Built for demanding automation and control applications, this Anytek T-series 5.0mm pitch PCB terminal block delivers 15A continuous current and 300V rated voltage for mid-power equipment wiring. 8-position configuration supports flexible system integration. Available in 8-position configurations; multi-pole ganging supported via dovetail interlocks. Each unit ships with captive screws pre-installed for immediate PCB placement. Compatible with industry-standard wave and selective soldering processes, this terminal block is qualified for use in industrial control panels, power-distribution boards, and instrumentation systems. RoHS and REACH compliant materials support global market deployment.
