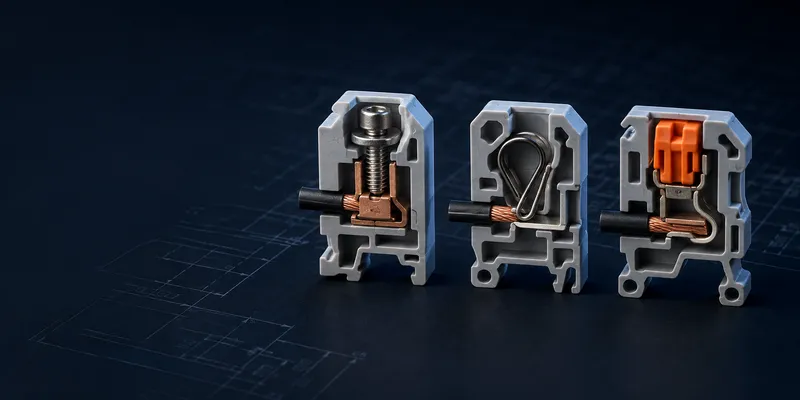

Screw vs Spring Clamp vs Push-in Terminal Blocks

Screw, spring-clamp and push-in terminals can all create reliable industrial connections when they are matched to the conductor and installed correctly. The best choice depends on assembly volume, vibration, wire type, service practice, current range, operator access and lifecycle cost—not on one technology being universally superior.

Quick Comparison

Feature	Screw Terminal	Spring Clamp (Cage Clamp)	Push-in
Wiring speed	Slow (screwdriver required)	Medium (tool to open, no tightening)	Fastest (solid wire: push only)
Vibration performance	Good when correctly selected and torqued; verify test data	Constant spring force; often selected for vibration	Constant spring force; verify conductor and test data
Maintenance	Follow manufacturer and equipment maintenance instructions	No torque step; inspect as the equipment plan requires	No torque step; inspect as the equipment plan requires
Wire range	0.14–50mm² (all types)	0.08–35mm²	0.14–4mm² (solid), limited stranded
Stranded wire	Bare or ferruled when approved	Bare or ferruled when approved	Direct actuation or ferruled insertion, depending on design
Tool required	Screwdriver	Screwdriver (to open)	None (solid wire). Screwdriver to release
Gas-tight connection	⚠️ Depends on torque (user-dependent)	✅ Spring compensates wire creep	✅ Spring compensates wire creep
Operator skill	Medium — must torque correctly	Low — tool opens, insert, release	Very low — push wire
Cost	$	$$	$$$
Best for	General industrial, power distribution	Railway, machinery, vibration	High-volume production, panel building

---

1. Screw Terminal: The Workhorse

The oldest and most widely used terminal. A screw drives a clamping cage that presses the wire against the current-carrying bar.

How It Works

Wire inserted → Screw tightened → Clamping cage presses wire against current bar → Connection made

Torque: The Critical Variable

Wire Size	Recommended Torque	Under-Torque Risk	Over-Torque Risk
0.5mm²	0.4–0.5 N·m	Loose connection, overheating	Crushed wire strands
1.5mm²	0.5–0.6 N·m	High resistance	Deformed wire
4mm²	0.8–1.0 N·m	Wire may pull out	Stripped screw thread
10mm²	1.2–1.5 N·m	Partial contact	Thread damage

Under-torque can increase contact resistance and heating; over-torque can damage the conductor, clamp or thread. Use the exact torque printed in the instructions and a controlled tool. Spring technologies remove the tightening-torque step but still require correct stripping and full insertion.

Vibration Loosening

Vibration performance is product-specific. A properly designed and installed screw connection can pass demanding tests, while a poorly torqued one can fail early. Compare the exact terminal’s vibration and shock qualification with the equipment profile.

---

2. Spring Clamp: Constant Contact Force

A spring element presses the conductor against the current bar with a defined contact force. The connection is opened by a screwdriver, lever or push button depending on the design.

How It Works

Screwdriver opens spring → Wire inserted → Screwdriver removed → Spring clamps wire → Connection made

Advantages Over Screw

Screw Terminal Failure	How Spring Clamp Avoids It
Torque varies by operator	No tightening torque step
Inconsistent torque	Spring force is constant (factory-set)
Wire creep (strands settle after tightening)	Spring follows the wire as it settles — maintains clamping force
Vibration	Defined spring force can provide stable performance; verify product qualification

Disadvantages

Disadvantage	Mitigation
Higher component cost in many series	Compare installed cost, wiring time and service cost
Requires screwdriver to open (not tool-free like push-in)	Standard flathead — any electrician has one
Lower max wire size (35mm²)	Screw terminals go to 50mm²+
Conductor preparation varies by design	Follow the listed bare/ferruled conductor ranges and actuation method

---

3. Push-in Terminal: Tool-Free Speed

Push-in terminals are spring clamps optimized for solid conductors: no tool needed to open the spring. The wire is simply pushed in.

How It Works

Solid wire pushed in → Spring yields → Wire seats → Spring clamps → Connection made

Speed Comparison (100 terminations)

Method	Time per Termination	Total Time
Screw terminal	12–15 sec	20–25 min
Spring clamp	8–10 sec	13–17 min
Push-in	4–5 sec	7–8 min

Push-in wiring can substantially reduce assembly time, especially with rigid or ferruled conductors. The table is an illustrative production estimate; measure actual cycle time with your wire preparation, labeling and test process before calculating savings.

Limitations

• Direct push-in capability depends on conductor stiffness and terminal design. Flexible conductors may require the actuator or a correctly crimped ferrule.
• Do not assume a universal 4mm² maximum; high-current push-in families exist, while compact PCB versions may accept much less.
• Verify the approved conductor range for bare flexible, rigid and ferruled conductors separately.

---

4. Total Installed Cost Matters More Than Unit Price

Compare the entire connection process:

• terminal purchase price and accessories;
• wire stripping, ferrule crimping and insertion time;
• torque-tool calibration and quality checks;
• rework caused by incomplete insertion or incorrect torque;
• inspection, testing and field-service time;
• training and ergonomic impact across high termination counts.

A higher-priced terminal can be less expensive at the panel level when it reduces labor or rework. Conversely, a screw terminal may remain the best value for low-volume equipment and larger conductor ranges.

---

5. Which Connection Technology Should You Choose?

Scenario	Recommendation
General purpose, cost-sensitive	Screw terminal
Vibration environment (railway, wind turbine, machinery)	Spring clamp
High-volume panel production (>500 terminations)	Push-in (solid wire)
Wire size >4mm²	Screw or spring clamp
Maintenance-free, long service life	Spring clamp or push-in
Field wiring with varied installer experience	Spring or push-in design with clear actuation and insertion indication
Legacy compatibility	Screw terminal

---

Compare a Real Application

GSConn offers screw, spring-clamp and push-in families for PCB and DIN-rail mounting. Share the conductor types, termination count, current, vibration profile, target approvals and annual production volume to compare compatible series on both component and installed cost.
