TBxx21600000G PCB Terminal Block 5.0mm Amphenol Anytek | GSCONN
5.0mm15A300VcULus
Optimized for compact industrial control board designs, this Anytek T-series 5.0mm pitch PCB terminal block delivers 15A continuous current and 300V rated voltage for mid-power...
Standard 5.0mm pitch designBalanced density
15A continuous current ratingMid-power equipment wiring
PCB-direct solder pinsThrough-hole PCB pins
cULus/VDE listedVDE
Technical Specifications
| Certification | cULus, UL, TUV |
| Number of Poles | 4 |
| Pitch | 5.0mm |
| Rated Current | 15A |
| Rated Voltage | 300V |
| Wire Gauge | AWG14-22 |
Key Features
- Precision 5.0mm centerline spacing optimized for balanced-density PCB layouts
- Rated current 15A continuous and voltage 300V for reliable industrial-grade performance
- Green PA66 housing with brass tin-plated contacts for low contact resistance
- Captive screw clamping mechanism with M2.5 steel screws for vibration-resistant termination
- Compatible with wire sizes AWG22-14 for flexible installation requirements
- Certified to VDE for global market deployment
- Compatible with industrial robot controller signal paths
- Compatible with wave and reflow soldering processes for volume production
Applications
- Industrial Automation

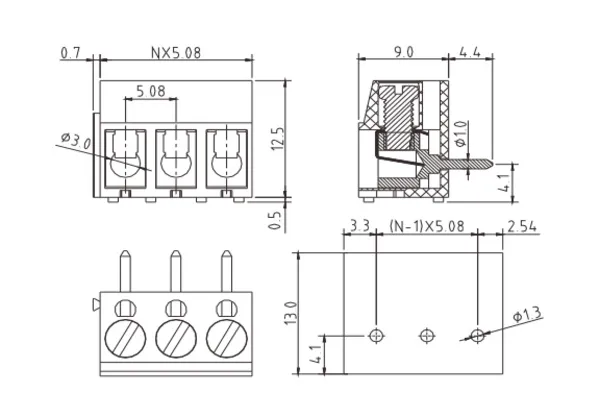

Drawing & Dimensions
Optimized for compact industrial control board designs, this Anytek T-series 5.0mm pitch PCB terminal block delivers 15A continuous current and 300V rated voltage for mid-power equipment wiring. 8-position configuration supports flexible system integration. Suitable for use in industrial automation, building controls, and instrumentation panels. Each unit ships with captive screws pre-installed for immediate PCB placement. Compatible with industry-standard wave and selective soldering processes, this terminal block is qualified for use in industrial control panels, power-distribution boards, and instrumentation systems. RoHS and REACH compliant materials support global market deployment.
