TExx01610000G PCB Terminal Block 3.5mm Amphenol Anytek | GSCONN
3.5mm10A150VcULus
Optimized for compact industrial control board designs, this Anytek T-series 3.5mm pitch PCB terminal block delivers 10A continuous current and 150V rated voltage for low-power...
Compact 3.5mm centerlineHigh-density PCB layout
10A low-resistance pathLow-power sensor interface
Reflow-solder compatibleThrough-hole PCB pins
cULus/VDE listedcULus
Technical Specifications
| Certification | cULus, UL |
| Number of Poles | 4~24 |
| Pitch | 3.5mm |
| Rated Current | 10A |
| Rated Voltage | 150V |
| Wire Gauge | AWG16-26 |
Key Features
- Precision 3.5mm centerline spacing optimized for high-density PCB layouts
- Rated current 10A continuous and voltage 150V for reliable industrial-grade performance
- Green PA66 housing with brass tin-plated contacts for low contact resistance
- Captive screw clamping mechanism with M2 steel screws for vibration-resistant termination
- Compatible with wire sizes AWG26-16 for flexible installation requirements
- Certified to cULus for global market deployment
- Compatible with industrial robot controller signal paths
- Compatible with wave and reflow soldering processes for volume production
Applications
- Industrial Automation

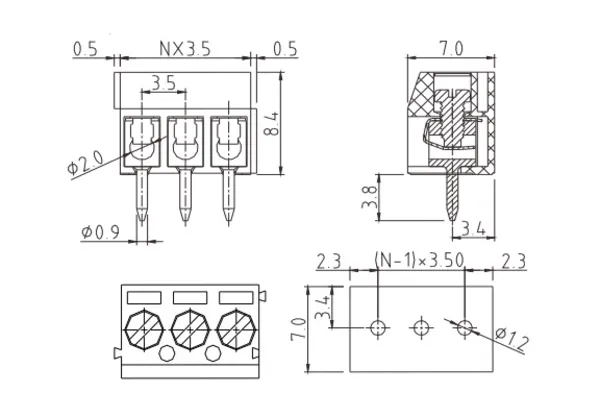

Drawing & Dimensions
Optimized for compact industrial control board designs, this Anytek T-series 3.5mm pitch PCB terminal block delivers 10A continuous current and 150V rated voltage for low-power sensor interface. 8-position configuration supports flexible system integration. Suitable for use in industrial automation, building controls, and instrumentation panels. Each unit ships with captive screws pre-installed for immediate PCB placement. Compatible with industry-standard wave and selective soldering processes, this terminal block is qualified for use in industrial control panels, power-distribution boards, and instrumentation systems. RoHS and REACH compliant materials support global market deployment.
